beam and block

Treanor Pujol Ltd manufactures a 155mm deep beam denominated House Beam and a 225mm deep beam denominated Deep Beam. These beams are made of prestressed concrete and have an inverted 'T' beams cross-section that enables them to be integrated into composite flooring systems. These beams are commonly used for housing, standard walling blocks are placed between them to form a beam and block floor.

The beams and blocks are easily handled and therefore quick and easy to install on site offering a low cost suspended floor solution. Under normal residential loading, the 155mm House Beam can span well over 6 metres while the 225mm Deep Beam can span upto 8 metres.

More than 20,000 linear meters of beams are available in permanent stock in our yard, which enables us to offer the customer great flexibility in the supply.

TP155 House beam
TP155 beam and block floor
TP155 Deep beam

See more about beam and block
Beam and book floor schema
Beam and book floor schema


We are able to offer a full and comprehensive product range from our production facility in Leeds, from 100mm deep solid planks to 500mm deep hollowcore flooring units.

TP 100100mm2.39 kN/m2
TP 150150mm2.37 kN/m2
TP 150 Sound150mm3.02 kN/m2
TP 200200mm2.97 kN/m2
TP 250250mm3.27 kN/m2
TP 300300mm4.07 kN/m2
TP 400400mm5.03 kN/m2
TP 500500mm6.02 kN/m2

At Treanor Pujol we are focused on meeting our customers requirements. From the initial design stage through to the completion of a project our expert team are on hand to offer our comprehensive support and advice.

Our hollowcore products are designed in accordance with BS 8110 and strict quality assurance procedures are in place during manufacturing and material testing.

See more about hollowcore
Hollowcore slabs sections 1/3 Hollowcore slabs sections 2/3
Hollowcore slabs sections 1/3 Hollowcore slabs sections 2/3


Treanor Pujol precast hollowcore wall panels are delivered to site made to measure to provide a quick and easy construction process for all types of warehouse, distribution centre and agricultural buildings. The wall panels comes with a smooth finish to both sides, prepared for a direct paint finish with little or no preparation. The density and durability of the TPW range of walling products ensure a long lasting maintenance free period.

We can also provide a full and comprehensive design, manufacture and install service as well as offer technical advice from our highly experienced staff. We can also offer help and advice should you wish to install with your own contractor.

Our company manufactures all our products in accordance with the relevant British Standard.

See more about walls


Treanor Pujol can offer a wide range of pre-cast stairs to fulfil all of our customers needs, cast both flat and on edge.

Our state of the art facility has allowed us to supply simple flights for use in residential construction to complex designs for use in custodial and commercial applications.

Stair flights can incorporate top, bottom and intermediate landings or alternatively separate landing units as per client requirement. Treanor Pujol can offer a full design, manufacture and install service.

All of our products are manufactured in accordance with the relevant British or European standards.

Precast stairs with top and bottom landings
Precast stair with top landing
Precast stairs

See more about stairs
Precast stair
Precast stair


Treanor Pujol collaborate with the PUJOL Group as stockists of Interior and exterior terrazzo products for commercial, industrial and residential use. Manufactured by GRAUS we can offer high quality terrazzo products designed specifically to our client’s requirements.

Our Terrazzo products are for use both internally and externally. Internally the main use for terrazzo is in commercial buildings where we are supplying projects throughout the world. Our terrazzo products have been supplied to leading retail facilities as well as hospitals, airports and also for residential usage. Externally we can offer a diverse product range suitable for many applications. Both internal and external terrazzo paving can be designed, manufactured and supplied to our customer’s specific requirements.

See more about terrazzo
Terrazzo tiles Terrazzo tiles
Terrazzo tiles Terrazzo tiles


Treanor Pujol offer a full and comprehensive installation service with associated Health and Safety measures for all of our products throughout the UK.

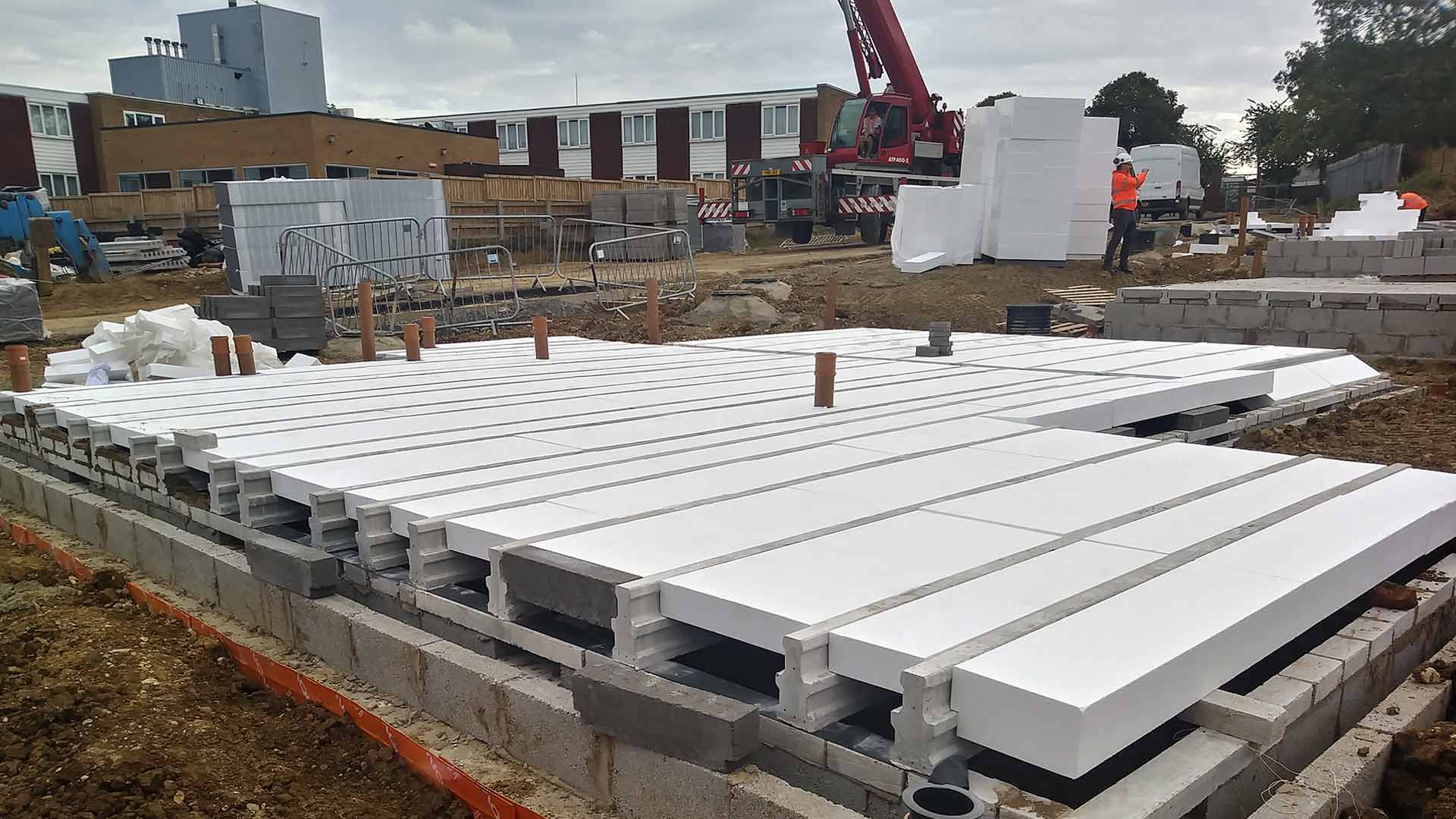

Beam and Block Installation

Beam and Block floors can be installed, in most weather conditions, by a variety of methods, (e.g. by hand, using site plant, "Hiab" type lorry or mobile crane) depending upon site conditions. Once the beams have been set out according to the layout drawings, infill blocks are placed in the rows between the beams. The floor should be grouted with 4:1 sand / cement grout brushed into the joints between the beams and blocks to stabilise the floor.

Hollowcore Installation

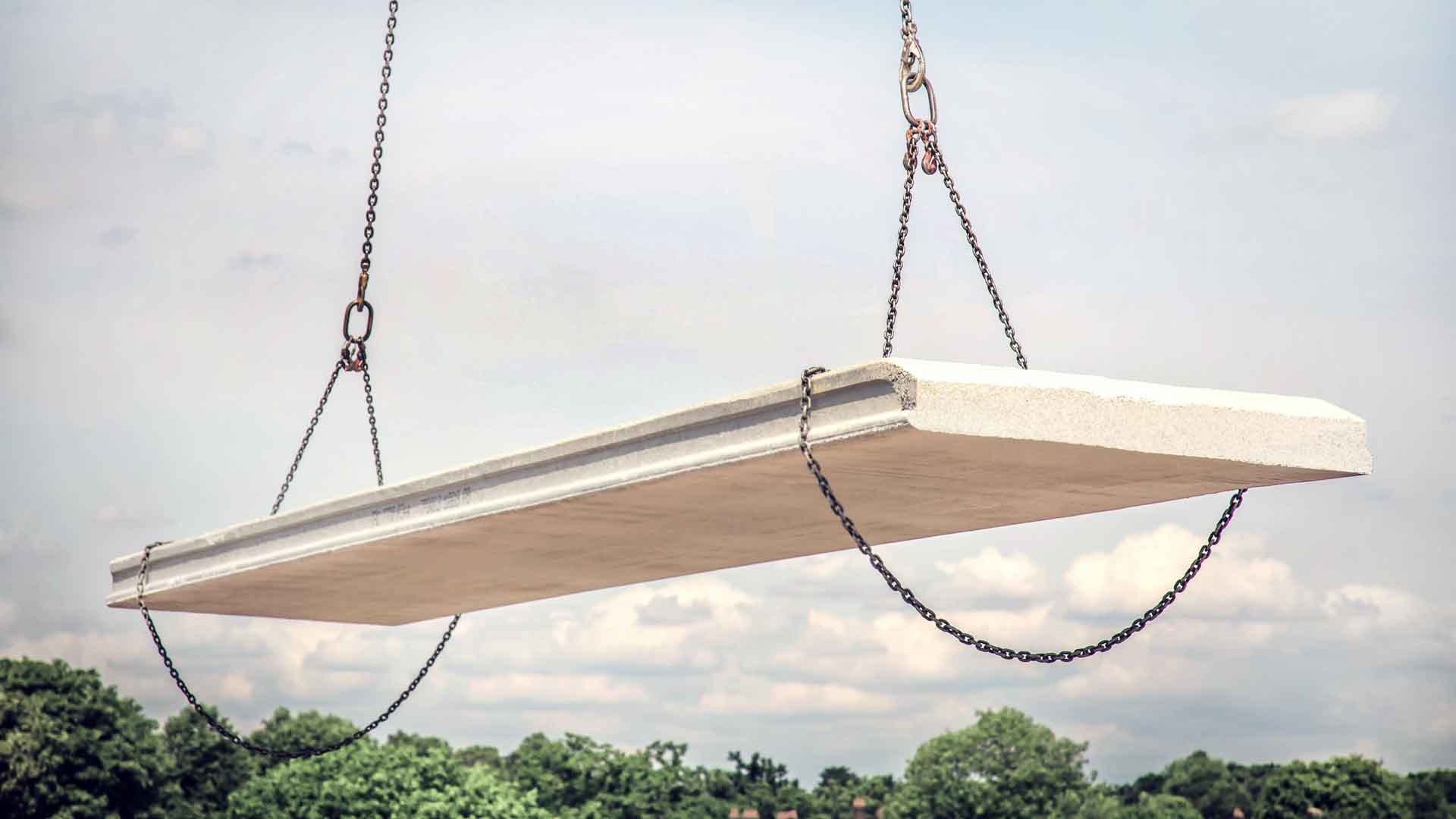

Installation of Hollowcore floor planks is straightforward. The units are hoisted into position on the supporting structure by crane and the joints grouted up to form a monolithic floor.

Lifting Hooks

Lifting hooks are cast into our hollowcore units (when required) to make the installation process quicker, easier and also safer. As they eliminate the need for tradition lifting chains they also reduce the risk of damage to soffits and blockwork.

See more about installation

about us

We are fully focused on supplying high quality products to the construction market like beam and block, hollowcore, walls, stairs and terrazo

Aerial view of Leeds factory for beam and block and hollowcore production Another aerial view of Leeds factory for beam and block and hollowcore production
See more about us

our catalogue

Download our product range catalogue (PDF)
